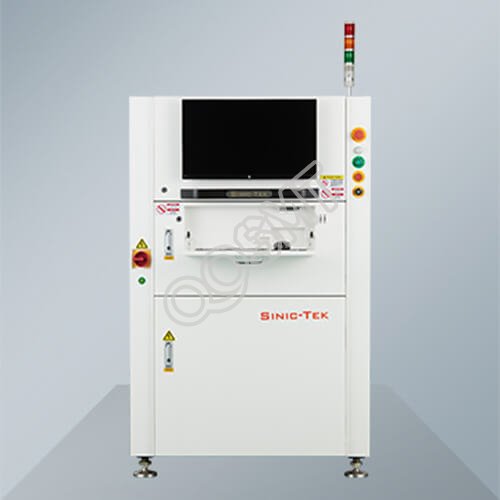

SinicTek 3D In line SPI InSPIre-686DL Inspection Machine
    • SinicTek 3D In line SPI InSPIre-686DL Inspection Machine

    SinicTek 3D In line SPI InSPIre-686DL Inspection Machine


    PCB size:450 x350 mm
    Dimension:​850x1430x1500mm
    weight:850KG
    Brand Name: SinicTek
    Model: InSPIre-686DL
    Condition: New / Used

    * We will reply you within 24 hours.

    Payment Methods

    Specification

    TECHNICAL PARAMETERS:

    Inspection Principle: Programmable phase contour modulation measurement techniques(PSLM PMP)

    Inspection type:Volume, area, height, XY offset, shape, etc.

    Defect Types:shift, excessive solder, insufficient solder, offset, deformed shape, etc.

    Smallest componet: 01005.

    Accuracy: XY=10 um,Height = 0.37 um.

    Repeatability: height：≤1um （4 Sigma）;volume/acreage：<1%（4 Sigma）.

    Maximum Loading PCB Size(X*Y):630x550mm.

    Inspection Speed: 0.35 SEC/FOV.

    Fiducial Detection Time: 0.3sec/piece.

    Maximum inspection height:±450um（±1200umOption）.

    RGB Tune patented technology.

    D-lighting patented technology.

    Dynamic and static warpage compensation.

    Barcode function with traceability.

    Closed loop to printers.

    Badmark transfer function to mounters.

    Access IMS system functions.

    Operating System Support: Windows 7 Professional (64 bit).

    Five-minute programming, one-click operation.

    SPC process control.
