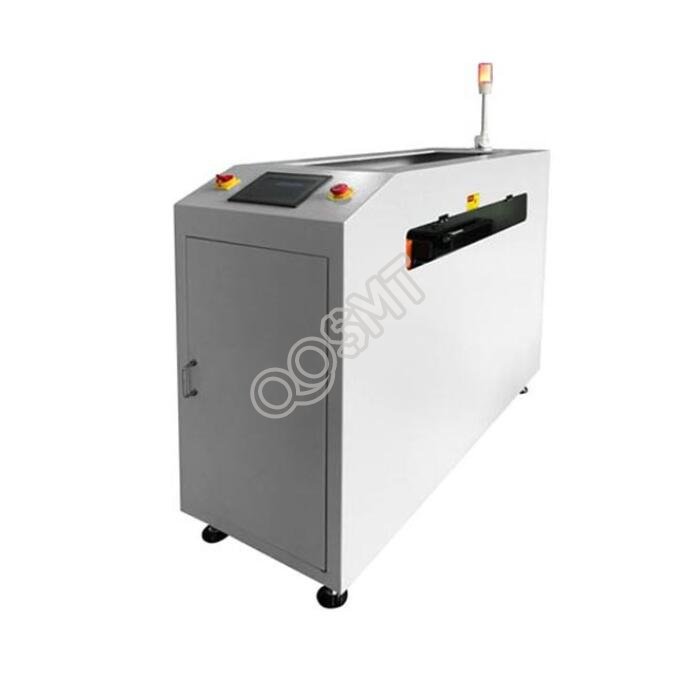

New Automatic SMT PCB Shuttle Translation Conveyor
Dimension(mm) 500*4500*1050 / 500*4500*1050
PCB size(mm) 50*50-330*250 / 50*50-460*330
PCB size(mm) 50*50-330*250 / 50*50-460*330
Brand Name:
Model:
Condition:
Payment Methods
Features
1.PLC+LED touch screen control, easy to operate.
2.Full closed design ensures safety level of operation.
3.The cover can be opened to facilitate machine maintenance.
4.Smooth and precise width adjustment (leadscrew).
5.Smooth and accurate movement (stepping motor).
6.Minimize the transmission gap between conveyors.
7.With SMEMA signal.
|
Technical Parameters
|
||
|
Model
|
PT-450M-FABN
|
PT-450L-FABN
|
|
Dimension(mm)
|
500*4500*1050
|
500*4500*1050
|
|
PCB size(mm)
|
50*50-330*250
|
50*50-460*330
|
|
Machine Width
|
Depends on traversing distance
|
|
|
Fixing method
|
Both sides can be moved.
|
|
|
Cycle time
|
30s
|
|
|
Belt type
|
Round belt or oblate belt
|
|
|
Power supply
|
AC 110/220V±10V, 50/60HZ
|
|
|
Power
|
Max 250VA
|
|
|
Transport height
|
900±20mm(or customer specified)
|
|
|
PCB direction
|
L-R or R-L (optional)
|
|
|
Belt type
|
3MM anti-static flat belt
|
|
|
Weight
|
140kg
|
200kg
|
