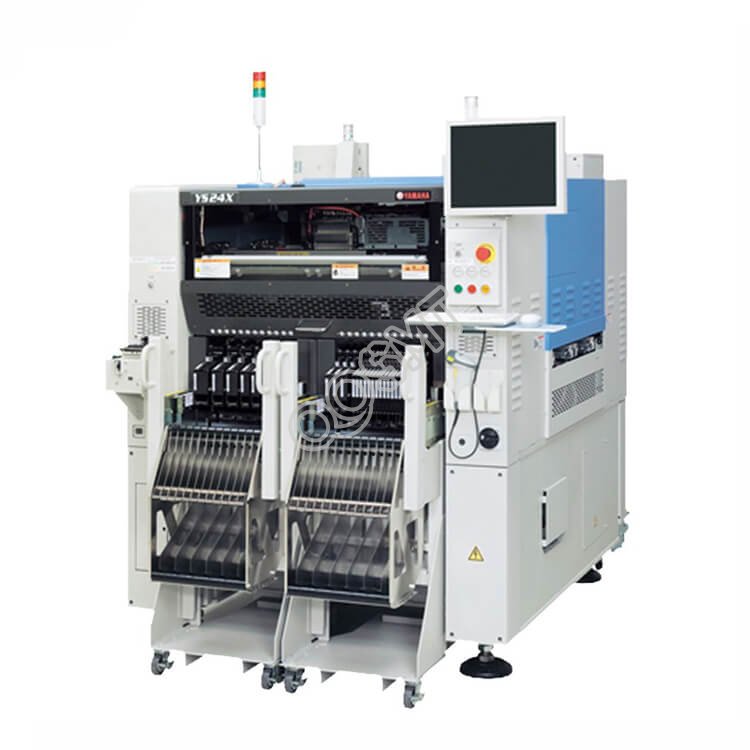

Yamaha YS24 SMT Mounter High Speed Placement Machine
    • Yamaha YS24 SMT Mounter High Speed Placement Machine

    Yamaha YS24 SMT Mounter High Speed Placement Machine


    Speed 72,000CPH
    Applicable components 0402 to 32x32mm
    Component Types: 120
    Weight Approx. 1,700kg
    Brand Name: Yamaha
    Model: YS24
    Condition: New / Used

    * We will reply you within 24 hours.

    Payment Methods

    Specification


    Specifications:

    Model

    YAMAHA YS24

    Applicable PCB

    L50xW50mm –to L700xW460mm

    Mounting accuracy

    +/-0.05mm ( + 3), +/-0.03mm (3)

    Speed

    72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)

    Applicable components

    0402 to 32x32mm MAX (Height 6.5mm or less)

    Component Types

    120 types (Max./8mm wide tape reel conversion)

    Power supply

    Three phase AC 200/208/220/240/380/400/416 V +/-10%

    Air supply source

    0.45MPa

    External dimension

    L1,254x W1,687x H1,445mm (Excluding protrusions)

    Weight

    Approx. 1,700kg



    Yamaha Placement Machine ys4

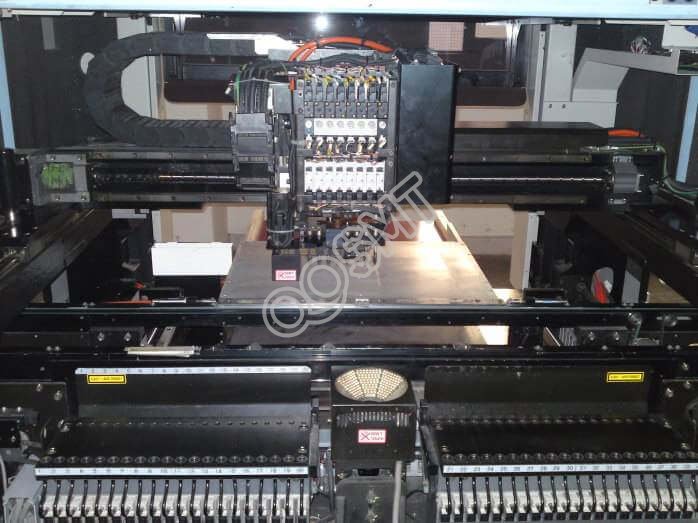

    72,000CPH (0.05sec/CHIP)The "YS24" has been developed as the flagship model of the "YS Series" that has been acclaimed for its superior area productivity, component applicability and ease of performing setup work. Two sets of 10 in-line multi heads are located on two beams within a compact platform that has a horizontal width of 1.25 meters. In addition, the adoption of a newly developed "Dual Stage Conveyor" has achieved the highest area productivity in the world *1 (34,000 CPH per square meter) with a superior mounting capability of 72,000 CPH *2 (0.05 sec./chip: Under optimum conditions as established by Yamaha Motor). The unit is also capable of handling super large printed circuit boards (PCBs) (L700×W460mm). Furthermore, the "SS Feeder" microcomputer controlled electric powered tape feeder *3 and a compact and lightweight feeder carriage have been adopted for the part changing unit, creating a mounting line configuration that boasts superior setup productivity in addition to very high production efficiency.
