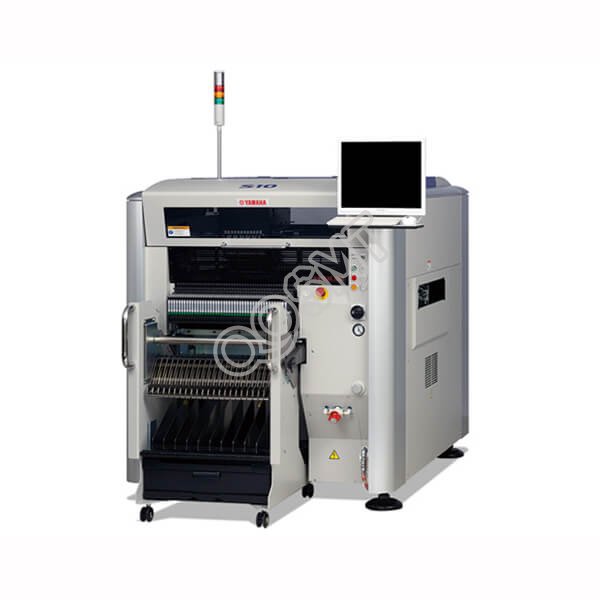

Yamaha S10 Mounter Low Cost Pick and Place Machine
Speed: 45,000 CPH
Applicable PCB: L1,330 x W510mm
Weight:1200KG
Dimension: L1250xD1750xH1420mm
Applicable PCB: L1,330 x W510mm
Weight:1200KG
Dimension: L1250xD1750xH1420mm
Brand Name:
YAMAHA
Model:
S10
Condition:
New / Used
Payment Methods
❙ Features of Yamaha S10 Pick and Place Machine
High quality yamaha chip mounter, chip shooter, yamaha pick and place machine.
1. Production Revolution Ultimate flexibility Color fiducial camera
2. Enhancement to 3D MID
3. Max. feeder capacity 180 lanes
4. Large board handling capability
5. Wide range component handling capability
6. CFB/CTF full compatibility
❙ Specification Yamaha Pick and Place Machine
| S10 | |
|---|---|
| Board size(with buffer unused) | Min. L50 x W30mm to Max. L1,330 x W510mm (Standard L955) |
| Board size(with input or output buffer used) | Min. L50 x W30mm to Max. L420 x W510mm |
| Board size(with input and output buffers used) | Min. L50 x W30mm to Max. L330 x W510mm |
| Board thickness | 0.4 - 4.8mm |
| Board flow direction | Left to right (Std) |
| Board transfer speed | Max 900mm/sec |
| Placement speed (12 heads + 2 theta) Opt. Cond. | 0.08sec/CHIP (45,000CPH) |
| Placement accuracy A (μ+3σ) | CHIP +/-0.040mm |
| Placement accuracy B (μ+3σ) | IC +/-0.025mm |
| Placement angle | +/-180 degrees |
| Z axis control / Theta axis control | AC servo motor |
| Component height | Max 30mm*1 (Pre-placed components: max 25mm) |
| Applicable components | 0201 (mm) – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -) |
| Component package | 8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray |
| Drawback check | Vacuum check and vision check |
| Screen language | English, Chinese, Korean, Japanese |
| Board positioning | Board grip unit, front reference, auto conveyor width adjustment |
| Component types | Max 90 types (8mm tape), 45 lanes x 2 |
| Transfer height | 900 +/- 20mm |
| Machine dimensions, weight | L1250xD1750xH1420mm, Approx. 1,200kg |
Board thickness + Component height = Max 30mm
