Two material options are available for the side panels:
80°C version: Side panels withstand momentary temperatures of 80°C and are suitable for the long-term storage of PCBs at temperatures below 50°C.
120°C version: Side panels withstand momentary temperatures of 120°C and are suitable for the long-term storage of PCBs at temperatures below 80°C.
The yellow buckle has been upgraded to a black anti-static buckle.

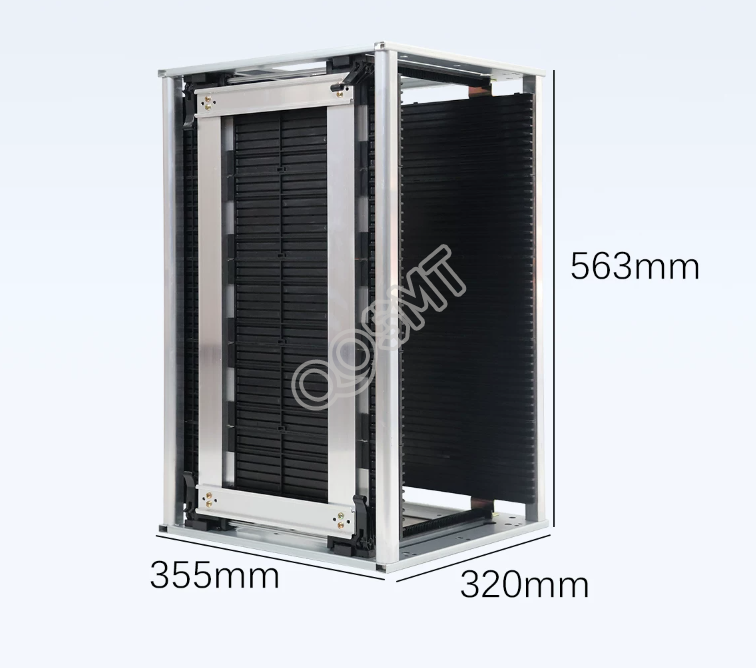

355×320×563mm (Small frame; highest usage volume)
Max. PCB length: 350mm
Adjustable PCB width: 50–250mm
Applications: Mobile phone boards, small module boards, small industrial control boards, consumer electronics PCBs

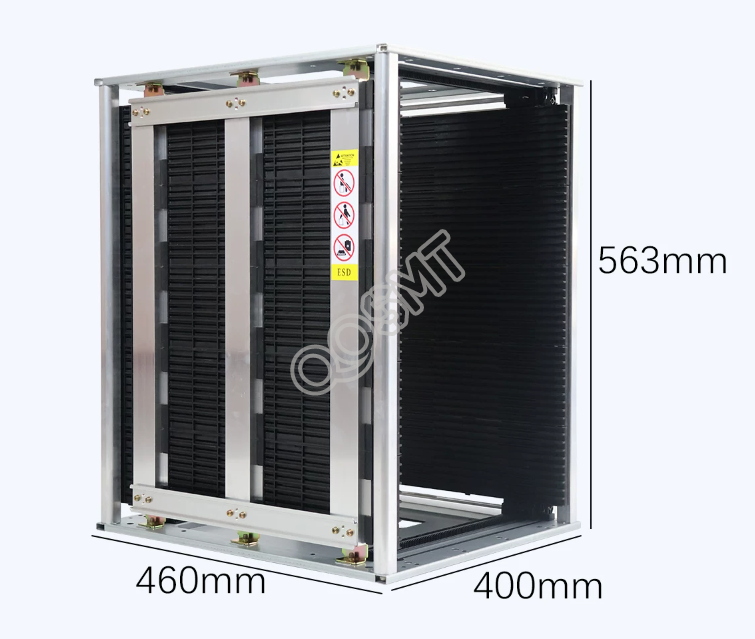

460×400×563mm (Medium frame)
Max. PCB length: 460mm
Adjustable PCB width: 50–330mm
Applications: TV mainboards, power supply boards, larger industrial control boards
535×460×570mm (Large frame)
Max. PCB length: 535mm
Adjustable PCB width: 50–390mm
Applications: Large boards, server PCBs, long-format substrates
535×530×570mm (Extra-wide frame)
Max. PCB length: 535mm
Adjustable PCB width: 120–460mm
Applications: Extra-wide PCBs, panel-type substrates
